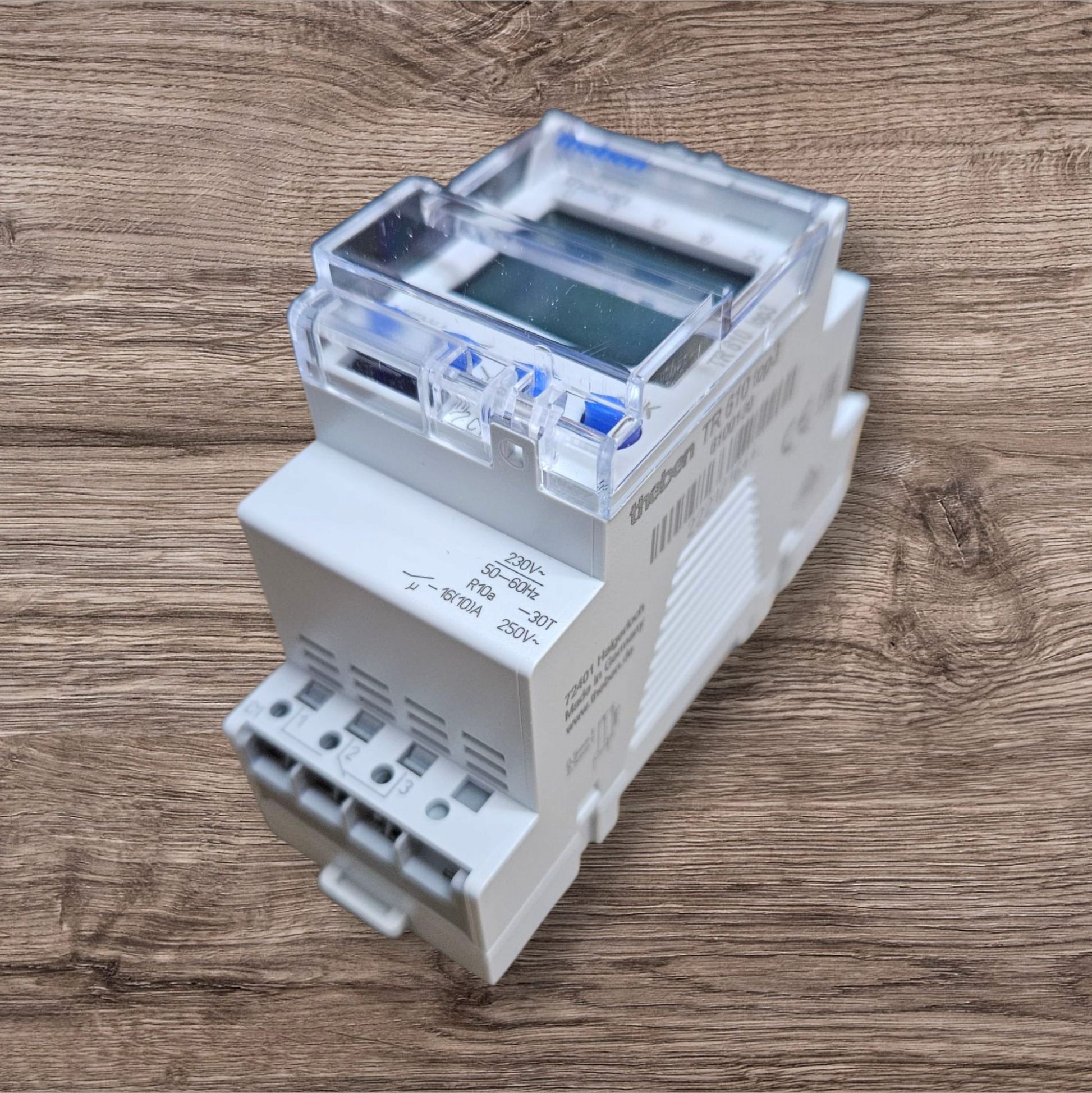

Theben TR610 top3 Digital Time Switch 6100130

Theben TR610 top3 Digital Time Switch 6100130

$125.00 SGD
$138.00 SGD $125.00 SGD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Theben TR610 top3 Digital Time Switch 6100130 is a high-tech solution for controlling lighting and temperature settings at home or in the workplace. With up to 140 switching programs, this digital time switch offers unmatched flexibility and precision, ensuring energy savings and increased efficiency. Trust in the expertise and reliability of this top-of-the-line product.



Function description

  • Digital time switch with weekly program
  • 1 channel
  • Programming by app possible
  • Safe transfer via optional Bluetooth Low Energy OBELISK top3
  • Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
  • 100 % compatible with top2
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing plug-in connection
  • Text-oriented user guidance in display
  • Preset date and time
  • fully operable without mains connection
  • 56 memory locations
  • Interface for OBELISK top2 memory card (PC programming)
  • 2. insertable switching program
  • Copying programs
  • Storing programs
  • 10 year power reserve (lithium battery)
  • Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
  • ON-OFF switching times
  • Switching preselection
  • Permanent switching ON/OFF
  • Integrated operating hour counter
  • Reset option
  • Service function for monitoring maintenance intervals
  • Holiday program
  • Display back light (can be turned off)
  • Permanent switching ON/OFF
  • PIN coding
  • Automatic summer/winter time changeover
  • can be deactivated
  • Date rule options are already stored for Europe, the USA and other countries
  • own date rule options or changeover around set dates are available
